Performer Hubs

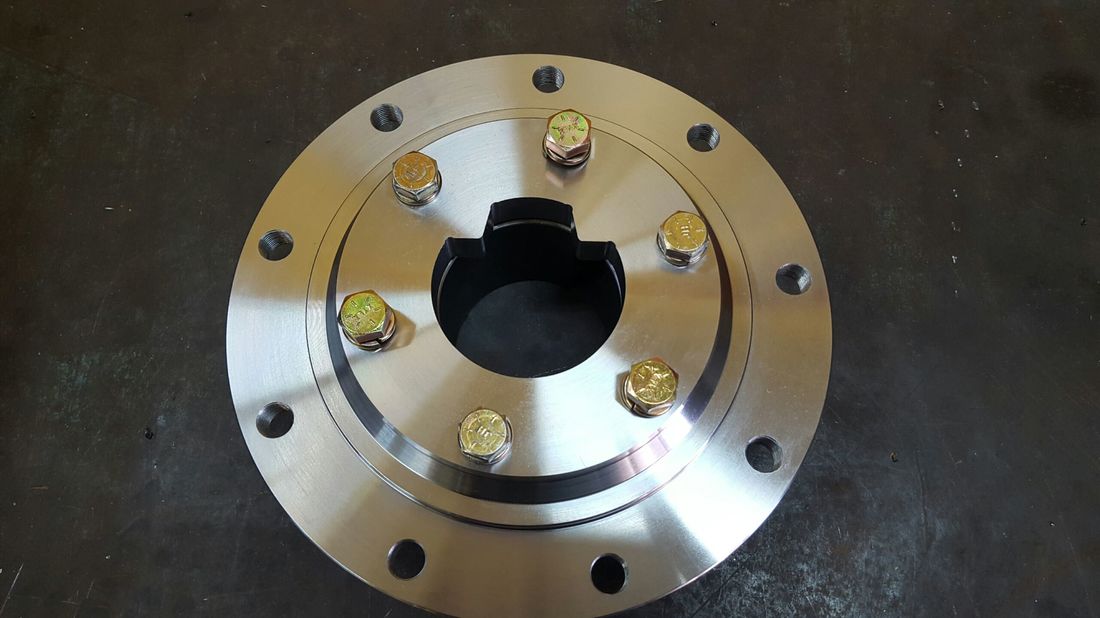

- Built on a similar base to the Super Classic Hub and incorporating an integral Insert Plate containing a CNC machined axle pattern. The plate is securely held in place by (3) M14x2.0 10.9 bolts. The wedge that holds the hub system in place is drawn through the front of the hubs to maximize backspacing.
- Available for tractors that have Smooth axles with single/dual keyway, Integral key axles (IH & Ford) as well as other tractors with straight, parallel Splined axles.
- Hub plates come STANDARD with threaded holes to use factory 5/8" x 18 fine thread lug bolts.
- STUDS are an optional UPGRADE
- We use fully threaded grade 8 5/8-18 bolts for studs
- Include a deeper pilot flange for additional rim support and transfer the weight of the tractor from the rim directly to the axle.

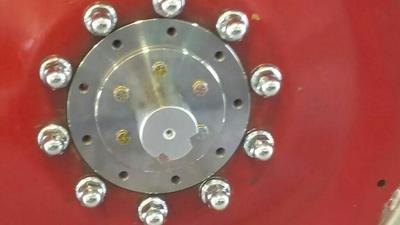

- Approximately 42 lbs per side for 9 bolt Hubs
- Approximately 65 lbs per side for 10 bolt Hubs
- (Comes with 9 bolt pattern as well)
|
|
Applications
Turbo, High HP V8 Tractors pulling in MPH and Open classes.
Unlimited HP Rating
Unlimited HP Rating
